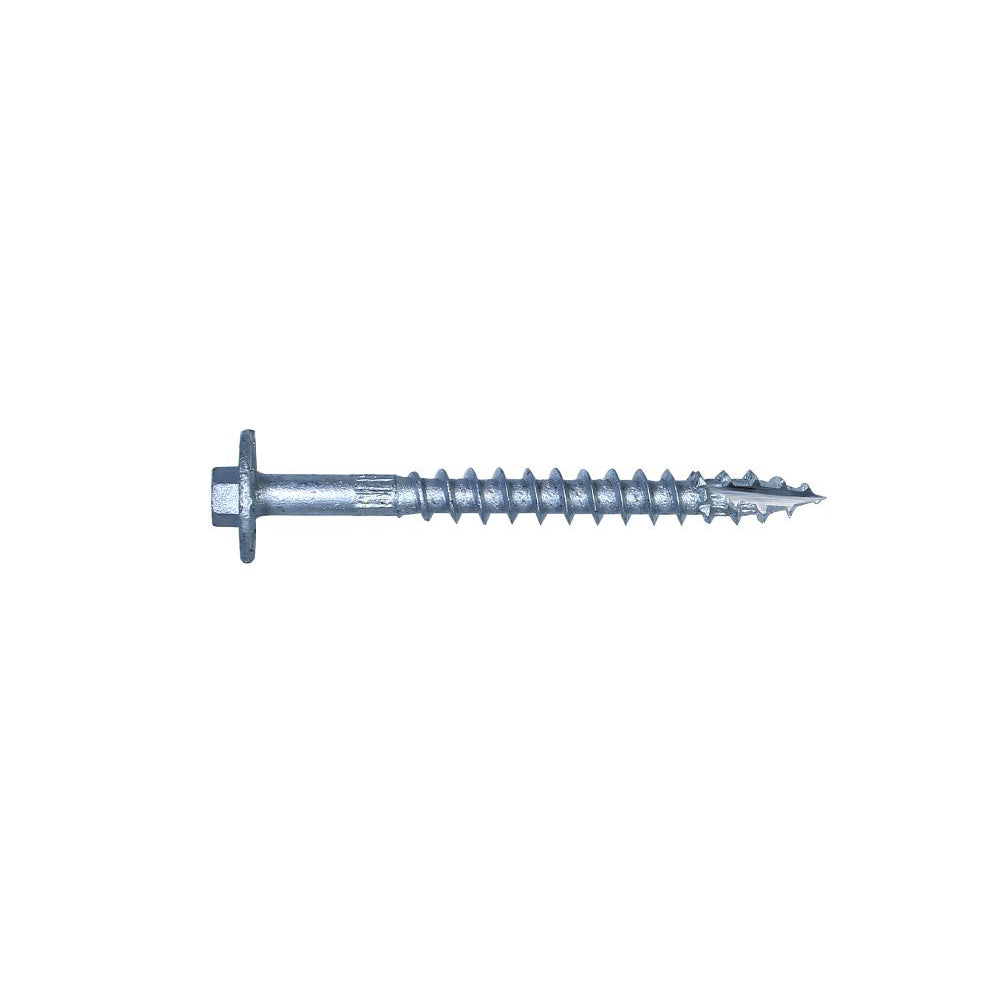

    SDWH Timber-Hex HDG Screw

    Vendor: Simpson Strong-Tie Type: Structural Screws
    4.5' (1201 Reviews)
    SKU: SDWH27400GR30
    $61.00
    Shipping calculated at checkout.
    Length: 4"
    Box QTY: 30
    Pairs well with
    View Full Details
    • 4
    • SDWH Timber Hex HDG screws by Simpson Strong-Tie
    • 6
    • 8
    • 10
    • 15
    • 12
    1 / 1
    Press & drag to view
    Product DetailsRelated ProductsTechnical SpecsReviews

    Trusted by pros who build where weather never lets up. The SDWH Timber-Hex HDG screw keeps projects moving with reliable performance from dock to deck.

    Specifications
    Product Includes
    • SDWH timber-hex HDG screw (quantity varies by SKU).
    Applications

    Structural wood-to-wood, engineered wood, including ledgers and pile connections.

    Related Products

    You may also like

    TECHNICAL SPECS

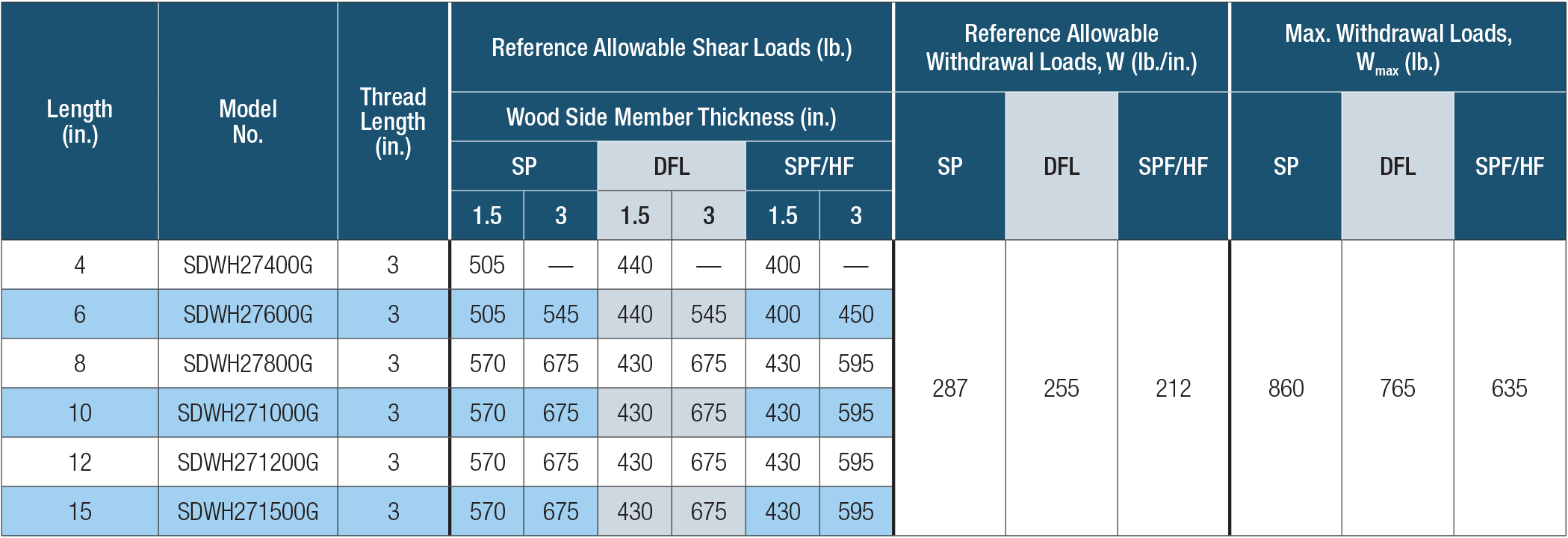

    Allowable Single Shear and Withdrawal Loads

    Table showing allowable shear loads for SDWH heavy duty timber hex hdg screws

    1. All shear loads are based on full penetration into the main member. Full penetration is the screw length minus the side member thickness.

    2. Allowable loads are shown at the wood load duration factor of CD=1.0. Loads may be increased for load duration per the building code up to a CD=1.6. Tabulated values must be multiplied by all applicable adjustment factors per the NDS.

    3. For in-service moisture content greater than 19%: withdrawal CM=0.65; shear CM=0.70.

    4. For minimum fastener spacing requirements for both side and main members, see the Spacing Requirements Figure and Table below.

    5. Tabulated loads are for both parallel- and perpendicular-to-grain loading.

    6. Maximum withdrawal loads are based on full thread length penetration in the main member.

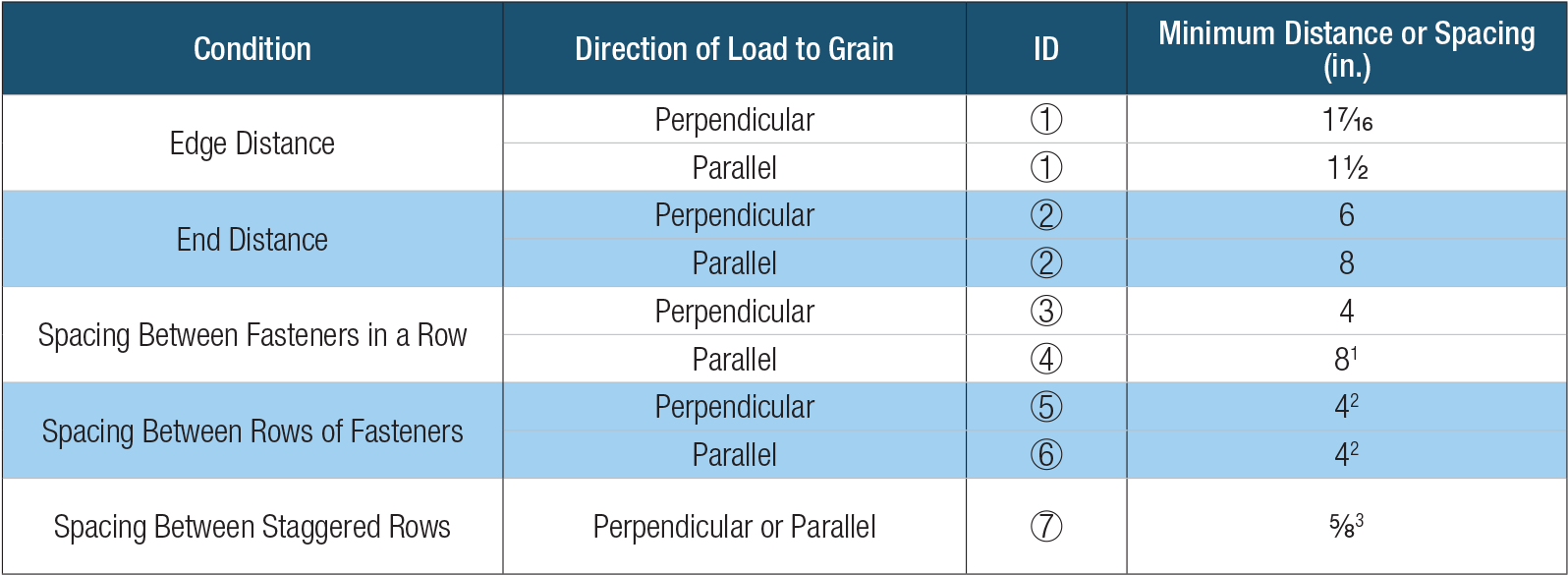

    Screw Spacing Requirements

    Table showing Screw placement requirements for SDWH heavy duty timber hex hdg screws

    1. Table loads must be multiplied by adjustment factor of 0.80.
    2. Table loads must be multiplied by adjustment factor of 0.89.
    3. Table loads must be multiplied by adjustment factor of 0.78.
    4. For axial loading only, use the following minimum dimensions: end distance = 4", edge distance = 1 5/8", spacing parallel to grain = 2 7/8", spacing perpendicular to grain = 2".

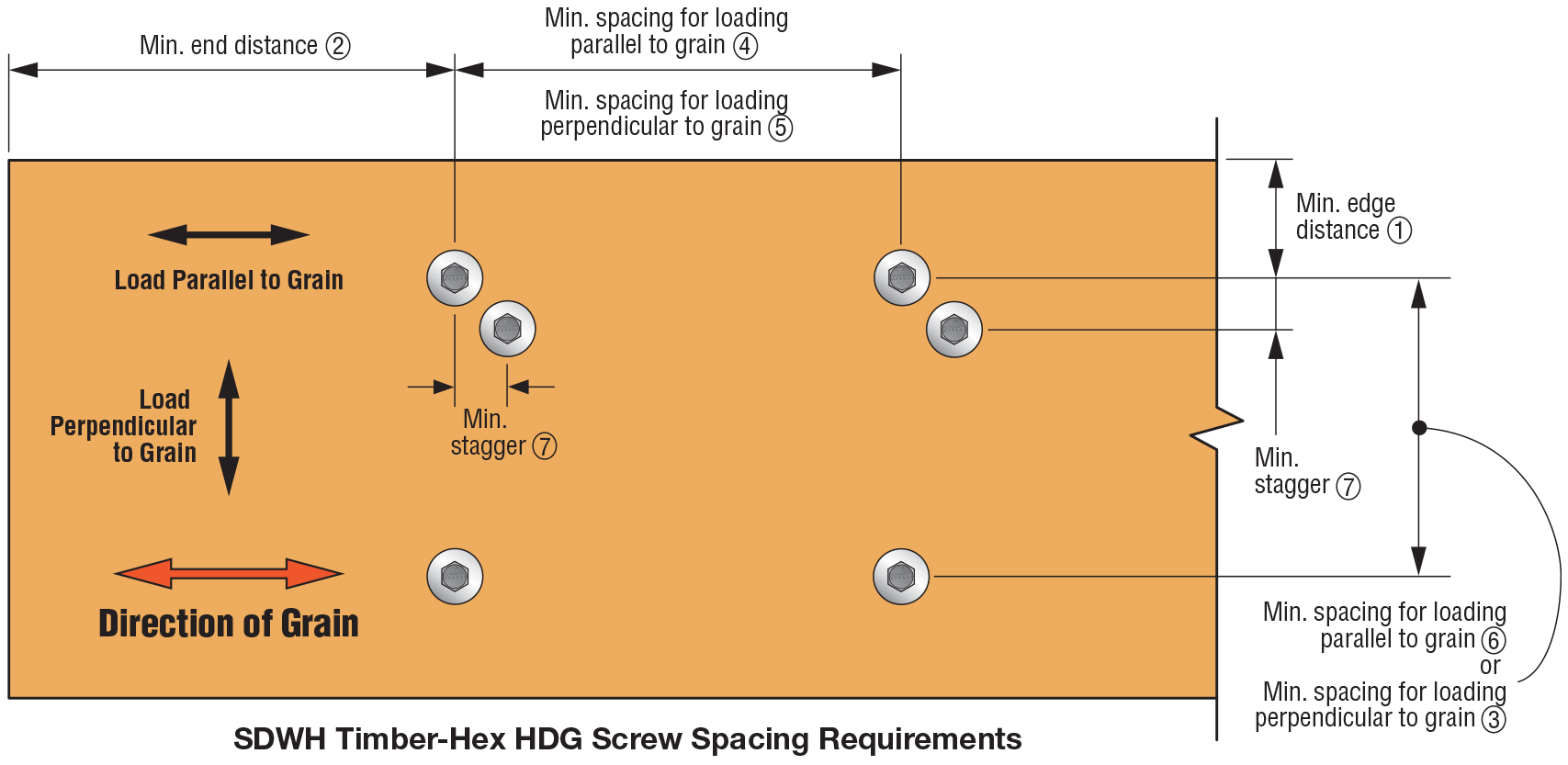

    Diagram of SDWH Timber-Hex HDG Screw Spacing Requirements on a wooden background

    Recently viewed

    Last seen items

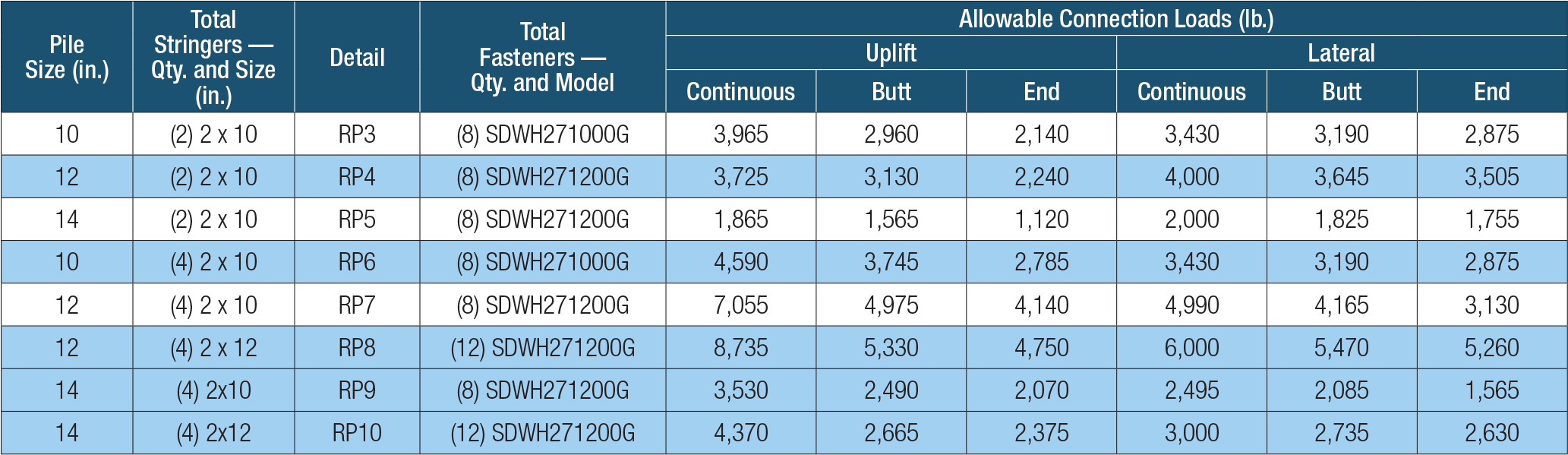

    Loads for Two-Sided, Stringer-to-Pile Connection

    Table with pile capacity details including total shaft capacity, allowable connection loads, and other specifications for SDWH heavy duty timber hex hdg screws

    1. Design of framing (stringers) and columns is by others.

    2. Wooden piles and framing are southern pine (SP) or engineered wood products with minimum specific gravity or equivalent specific gravity of 0.55.

    3. Use the screw lengths cited in the tables and details.

    4. Tabulated loads are total load, not per side, and are based on double shear action with the same size and quantity of stringers on opposing faces of the pile.

    5. Dimensions and allowable connection loads are based on notched piles that must accommodate the stringers with adequate bearing and no gaps.

    6. Notched piles shall not be notched such that more than 50% of the cross section is removed.

    7. Unnotched piles may be assigned notched pile loads if the unnotched-pile dimensions meet or exceed the maximum dimensions for the notched pile and fastener placement is the same.

    8. Tabulated values shall be multiplied by all applicable service adjustment factors per the NDS. Allowable loads are shown with a load duration factor of CD = 1.0. Loads may be increased for load duration per the building code up to CD = 1.6. For service moisture content greater than 19%, use CM=0.70.

    9. When the connection on an unnotched pile is simultaneously loaded in more than one direction, the allowable load must be evaluated using the unity equation: (Design uplift/Allowable uplift) + (Design lateral/Allowable lateral) + (Design vertical/Allowable vertical) ≤ 1.0. If notched piles are used, the last term is zero.

    10. For stringer thickness at least 1.5" and less than 3", use the table values for the conditions with a single 2x stringer.

    11. Butt loads are based on all stringer members butted. For multi-ply stringers where one stringer is continuous, use the tabulated loads in the “Continuous and Lap” column.

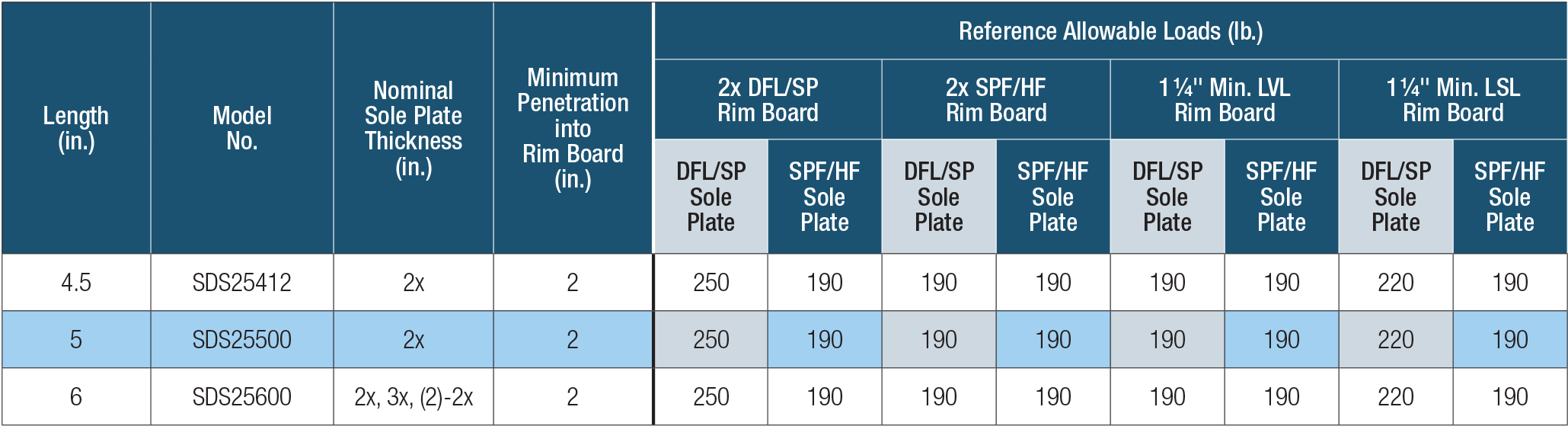

    2024, 2021 & 2018 IRC Compliant Spacing for a Sawn Lumber Deck Ledger-to-Rim Board

    Table detailing specifications for rim boards with various dimensions and plate thicknesses.

    1. SDWH27G screw spacing values are equivalent to 2024/2021/2018 IRC Table R507.9.1.3(1) and 2015 IRC Table R507.2. The table also provides SDWH27G screw spacing for a wide range of materials commonly used for rim board, and an alternate loading condition as required by some jurisdictions.

    2. Sawn lumber rim board shall be spruce-pine-fir, hem-fir, Douglas fir–larch, or southern pine species. Ledger shall be hem-fir, Douglas fir–larch, or southern pine species.

    3. Fastener spacings are based on the lesser of single fastener ICC-ES AC233 testing of the Strong-Drive SDWH27G screw with a safety factor of 5.0 or ICC-ES AC13 assembly testing with a factor of safety of 5.0. Spacing includes NDS wet service factor adjustment.

    4. Multiple ledger plies shall be fastened together per code independent of the SDWH27G screws.

    5. Screws shall be placed 1.5" to 2" from the top and bottom of the ledger or rim board with 3" minimum and 6" maximum vertical distance between fasteners with horizontal on-center spacing per the table. End screws shall be located 6" from the end and at 1.5" to 2" from the bottom of the ledger. For screws located at least 2" but less than 6" from the end, use 50% of the load per screw and 50% of the table spacing between the end screw and the adjacent screw, and for screws located between 2" and 4" from the end, predrill using a 3/16" drill bit.

    6. Structural sheathing between the ledger and rim board shall be a maximum of 1/2" thick and fastened per code.
